**Important Safety Details**
After installation of the vent, always test for proper functioning of magnetic damper door to assure that it will open properly on the lowest fan setting. Smaller magnets are used on smaller diameter vents requiring less CFM air flow, but settings vary so testing and inspection is important. Example: (A 4 inch dryer vent cover must open at a force of 50 CFM) Call or email us right away if the damper door doesn't open on the lowest fan setting and we will replace the vent free of charge.
Eliminate Heat Loss and Create a Tight Energy Seal with Energy Saver Vents!
 |
Energy Efficient Foam & Magnet Pad Seal - Wind Rattle Proof - Animal Resistant
Why Buy From Us?
- Hand Made Quality
- Small Business Touch
- Quick Turnaround
- American Made
We Accept All Credit Cards
Buy Online or Call To Order
Pay with Check - Click Here
Quick Answers
Connect With Us
Galvanized Energy Saver Magnetic Damper Wall Vents
Product Metal Size Price
Metal Size PriceEnergy Saver Galvanized 4" $49.00
$49.00 Energy Saver Galvanized 6" $55.00
$55.00 Energy Saver Galvanized 8" $61.00
$61.00 Energy Saver Galvanized 10" $71.00
$71.00 Energy Saver Galvanized 12" $85.00
$85.00 Energy Saver Galvanized 7" $59.00
$59.00 Energy Saver Galvanized 5" $53.00
$53.00 Energy Saver Galvanized 3" $48.00
$48.00 Click below to purchase
W/ Damper W/ Damper & Screen
Damper Stays Shut When Tilted Forward
Energy Saver Galvanized 3.25 x 10" $50.00
Energy Saver Black 3.25 x 10" $59.00
Energy Saver Black 3.25 x 12" $69.00
Energy Saver Black 3.25 x 14" $74.00
Smaller Vents with Lower CFM Air Flow use Smaller Magnets on the Damper Door
Always Test for Proper Opening After Installation
Energy Saver Wall Vents
Made with Rigid Thicker Gauge American Sourced Galvanized Steel, These Vents Rock!
Don't Waste Time or Money on Cheap Metal or Plastic Vents from Other Sources. Do it Right the First Time!
Energy Saver Wall Vent Uses
When Purchasing: Select Both Magnetic Damper and Screen for All Uses Except Dryer Venting. It is a Building Code Violation to Use a Dryer Vent with a Screen. The Screen will Plug with Lint and Create a Fire Hazard.
Use Damper and Screen for Bathroom Venting, Kitchen Range Hood Venting, Portable Air Conditioner Exhaust Venting, General Exhaust.
(Note Screen is Not Removable)
Use Damper Only for Clothes Dryer Venting
For Air Intake with No Damper Click Here
For Vent Measurements and Specs Click Here
For quantity quotes and custom powder coating options: Email [email protected]
Allow 2 Day Lead For Product to Ship. Vents are Stocked without Magnets. Magnets Must be Added Prior to Shipment
All Energy Saver Wall Vents Now Come with Standard Wind Guard in Addition to Magnetic Damper Door
Additional Product Details
- Made from 26 Gauge Galvanized Steel
- Hand Checked Before Shipment
- Sizes: 3 Inches to 12 Inches and Measurements Correspond with the Diameter of Manufacturer Specified Exhaust Ducting.
- Throat Length of Wall Vent is 8.5" Long & Installs over Crimped Duct End. Custom Throat Length Available for Block or Thick Insulated Walls. Email Dave for Details
Common Vent Sizes:- Standard Dryer Vent: 4" Diameter
- Standard Bath Vent: 4" Diameter
- Standard Portable AC Vent: 5" Diameter
- Standard Microwave Vent: 3.25 x 10"
- Kitchen Range Vents: Range from 5" to 12" Diameter or 3.25 x 10", 3.25 x 12", 3.25 x 14" and 6 x 10" Rectangular
- Standard Rectangle to Round Duct Boot Conversions: 6" or 7" Round to 3.25 x 10"
(available at Home Depot or Lowes)
View from Bottom
4" Round Energy Saver Dryer Vent

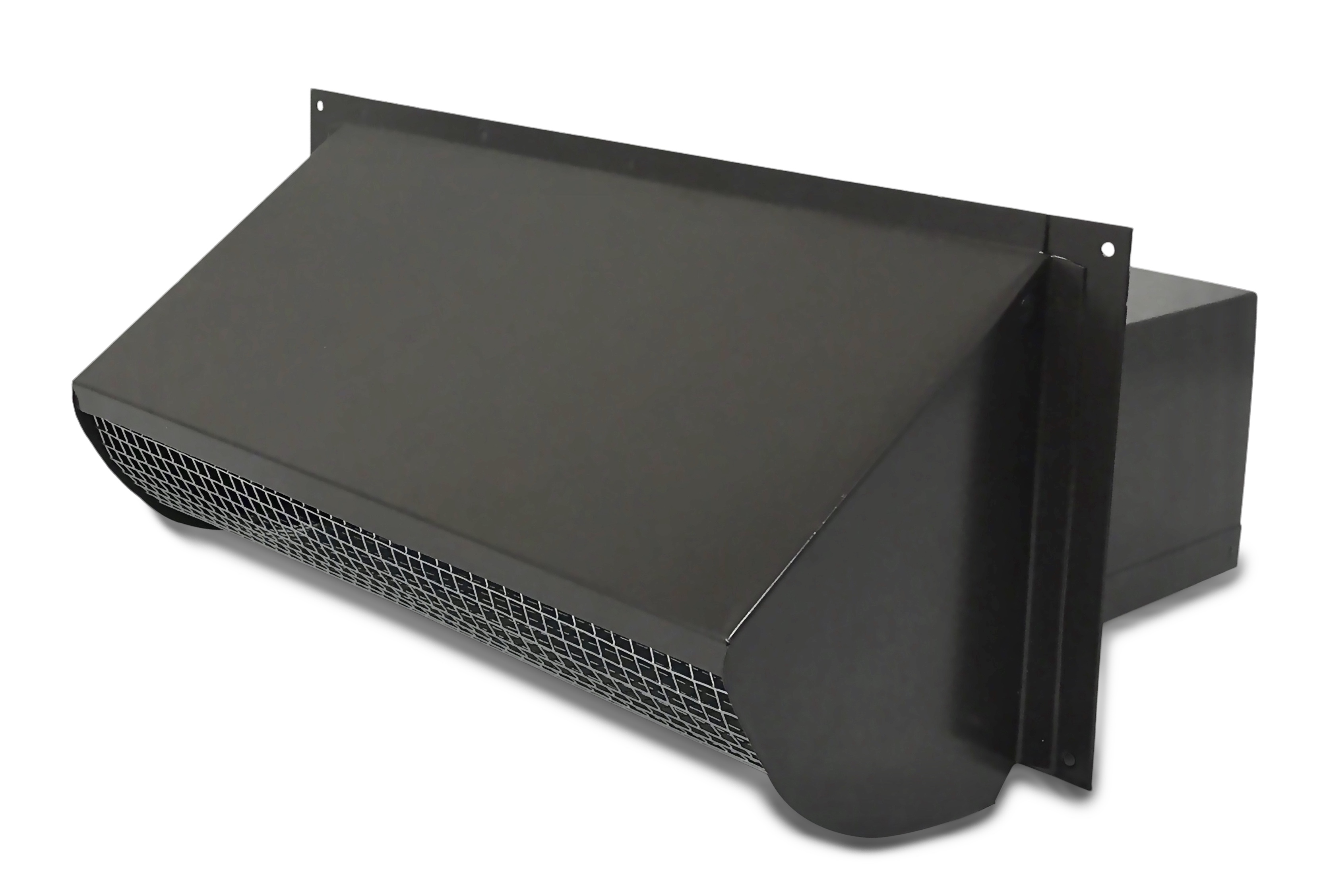

Side View 3.25 x 10"
Black Powder Coated Galvanized
View from Bottom
3.25 x 10" Rectangle Connect
Side View 4" Round
Custom Coated Wall Vent
Side View 6" Round
Galvanized Energy Saver
Vent Penetrations in Any Structure are Potential Areas of Great Energy Loss and Inefficiency. Luxury Metals Energy Saver Vents Prevent Cold and Hot Outside Air Infiltration at These Weak Points and Will Save You Money.
